Bay Window Double French Return Rod

Bay Window Double French Return Rod

Prix habituel $0.00 USD
Prix habituel Prix promotionnel $0.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

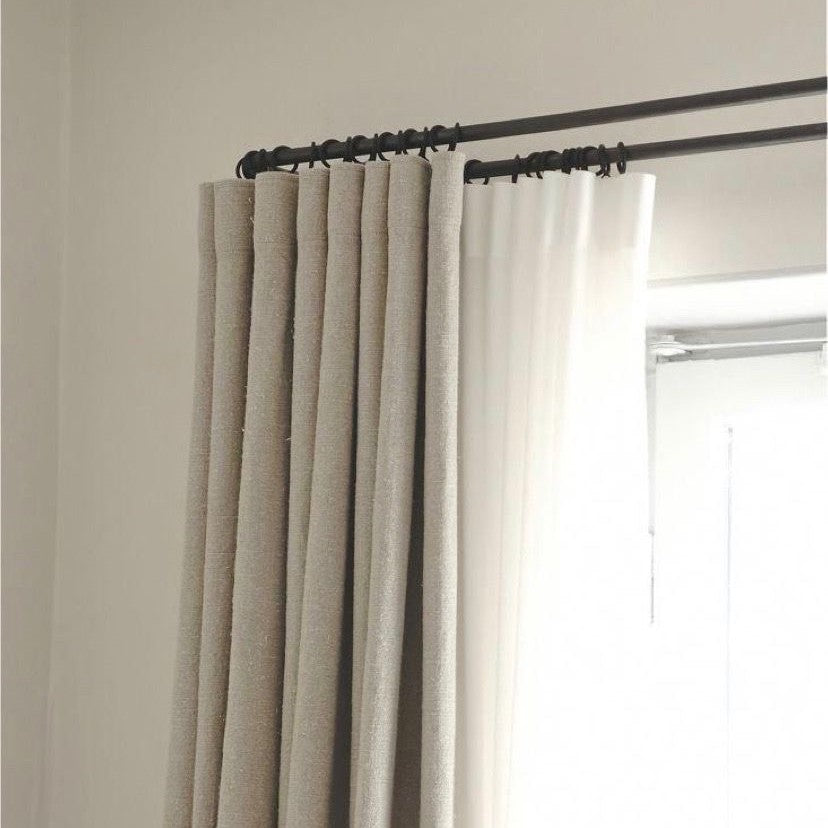

Design a Double French return corner curtain rod by selecting your favorite finish and center mount as needed.

Sheer rod has a 2-1/4″ Projection to center rod and Front Rod has a 5-1/2″ Projection from wall to center rod.

Double Rods over 72" long will require center support mounts, over 144″ requires two, over 215″ requires three and so on.

Bypass mounts and C-Rings are required if you need the curtain to draw past the support mounts.

See details and measuring guides below

Measurement Guide

How to measure the angle of my bay window

Most bay window angles are 135 degrees, (which is a 45 degree bend to a straight rod). There are many ways to measure or determine the angle. This page will allow you to measure the angle without any special tools or knowledge. If the angles in your project are other than 45 or 90, you will need custom bends.
To measure the angle, you are simply going to create a triangle using the walls as two 12″ sides and then provide the length of the third side of that triangle by following the easy steps below.

  1. Measure 12″ from the back corner along the side wall and make a small (light) pencil mark on the wall.
  2. Measure 12″ from the back corner along the back wall and make a small (light) pencil mark on the wall.
  3. Measure the distance between your two pencil marks and enter that number

Left Wall Angle

Your custom bend angle is:

Right Wall Angle

Your custom bend angle is:

Need to convert your measurements?

Your rod length in inches is:

Afficher tous les détails

Contenu réductible

Détails et dimensions

Guide de mesure

Finitions patinées

Informations d'expédition

Guide d'installation

Informations Complémentaires

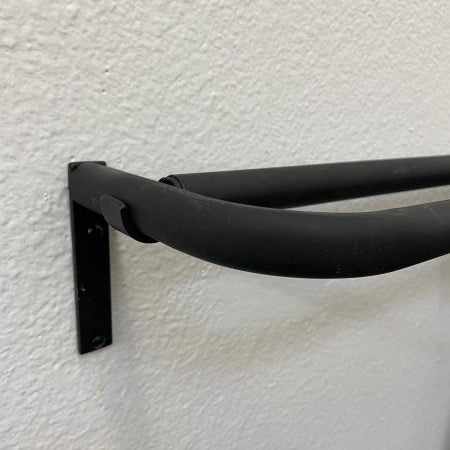

Bay windows typically have 45 degree or 90-degree bend. The 7/8" diameter rods will have a radius (rounded) corner.

Double Bay Window Rods will ship in six or more pieces depending on the size (three front rods and three sheer rods). Rest assured, we can easily guarantee that any of our joined curtain rods will be as strong and functional as a one-piece curtain rod. When our rods are split for shipping, they and joined together internally with a center connector so there is never a bump for your curtains to hang up on. Mounting brackets will be placed where the rods join together.

Bypass Mounts and C-Curtain Rings are recommended for all rods with corner bends to allow your draperies to stack neatly into the corners of the window.

Sheer rod has a 2-1/4″ Projection to center rod and Front Rod has a 5-1/2″ Projection from wall to center rod.

Double rods over 72″ long will require center support mounts. Bypass mounts and C-Rings are required if you need the curtain to draw past the support mounts.

Order changes on custom curtain rods can be made within 24 hours of placing the order. Since all curtain rods are custom cut to your measurements, we cannot make changes after the 24 hours.

All hardware selected with you curtain rod will be treated with the same patina finish, this includes the rod, mounts, finials, curtain rings and supplied hardware.

Our antique black finish is a very deep flat black reminiscent of the hand applied carbon and wax finishes used by yesterday’s blacksmiths.

Our hand applied iron oxide patina finish is the most versatile finish we produce. It is the correct choice for rustic and Tuscan decor and blends perfectly with your oil rubbed bronze, rusty brown, or black iron decor.

Our hand applied burnished silver patina finish has rich nickel silver highlights with antique black iron undertones and blends well with stainless or nickel accessories and decor.

Our hand applied antique gold patina finish has rich deep gold highlights with antique black iron undertones reminiscent of Spanish and Italian treasure.

Curtain rod orders ship within 3-4 weeks via UPS ground.

The maximum length we can ship curtain rods in one piece is 94″ however, we will generally split curtain rods at the mounting points if over 80″. We have developed a system that is invisible, strong, easy to assemble, and will allow you to build a high-quality curtain rod without concern of sagging or poor performance.

French Return style curtain rods are exclusive to the 7/8" diameter rod.

To order a French Return on one side only, use the "Special Instructions" box to tell us which side needs an end mount or finial, and which side needs a 90-degree return.
